Wuxi FSK Transmission Bearing Co., Ltd fskbearing@hotmail.com 86-510-82713083
제품 상세정보
원래 장소: 중국
브랜드 이름: FSKG / KBE / OEM / Any Brand
인증: ISO9001-2000 / SGS / BV / CE / IAF
모델 번호: 306674
지불과 운송 용어
최소 주문 수량: 1개
가격: Talk in the letter
포장 세부 사항: 1) 컬러 단일 상자 포장 + 판지 상자 포장 + 팔레트, 2) 산업용 포장
배달 시간: 세부사항 확인 후 5-7일
지불 조건: L/C, T/T, 서부 동맹, MoneyGram
공급 능력: 100000pcs/월
모델 번호.: |
306674 |
306674 베어링 크기: |
350*500*70mm |
306674 베어링 무게: |
46KG |
판매지역: |
동북아시아, 동남아시아, 아프리카, 중동, 유럽, 북미, 남미 |
기원: |
중국 |
재료: |
스테인레스 스틸/크롬 스틸 |
자격증: |
ISO9001 |
품질: |
ABEC-5 |
모델 번호.: |
306674 |
306674 베어링 크기: |
350*500*70mm |
306674 베어링 무게: |
46KG |
판매지역: |
동북아시아, 동남아시아, 아프리카, 중동, 유럽, 북미, 남미 |
기원: |
중국 |
재료: |
스테인레스 스틸/크롬 스틸 |
자격증: |
ISO9001 |
품질: |
ABEC-5 |

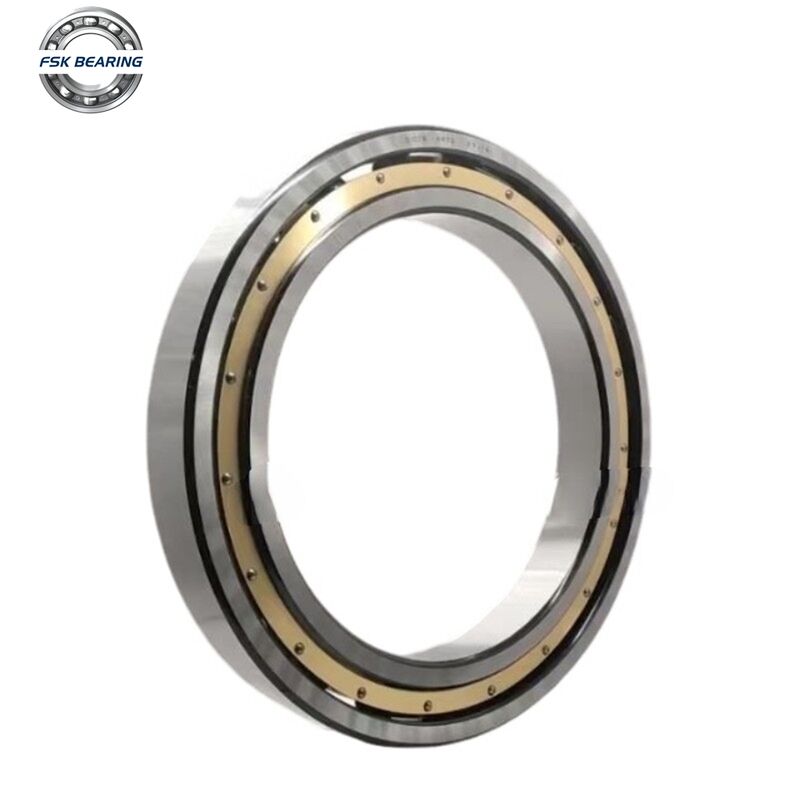

Radial 306674 Deep Groove Ball Bearing 350*500*70mm Brass Cage Thin Wall
Bearing Specification :
| FSK BEARING Model Number |
306674 |
| Part Name | Deep Groove Ball Bearing |
| Features | Thin Section Ball Bearing |
| Row | Single Row |
| Cage | Brass Cage/Steel Cage/Nylon Cage |
| Dimensions(mm)(d*D*b) | 350*500*70mm |
| Weight / Mass ( KG ) | 46kg |
| Material | Gcr15 Chrome Steel |
| Precision Rating | ABEC-3 / ABEC-5 |
| Brand | FSKG / KBE / OEM / Any Brand |
| Original Country Show |
CHINA ( FSKG) |
Detail Bearing Photos :
Same Series Deep Groove Ball Bearing Model Table:
| Main dimensions | Basic load ratings | Fatigue load limit Cu |
Speed ratings | Dimensions | Mass | Designation | ||||||
| d | D | B | Dynamic C |
Static C₀ |
Reference | Limiting | d | r1,2min | ramax | Standard design | ||
| [mm] | [kN] | [rpm] | [mm] | [kg] | ||||||||
| 320 (cont.) |
480 | 74 | 376 | 564 | 12 | 2500 | 1900 | 320 (cont.) |
4 | 3 | 46 | 6064 |
| 580 | 92 | 535 | 829 | 17 | 2000 | 1700 | 5 | 4 | 110 | 6264 | ||
| 330 | 460 | 56 | 291 | 449 | 9.51 | 2500 | 1600 | 330 | 3 | 2.5 | 30 | 306728 |
| 340 | 420 | 38 | 183 | 286 | 6.24 | 2600 | 2000 | 340 | 2.1 | 2 | 11.5 | 61868 |
| 460 | 56 | 281 | 439 | 9.3 | 2400 | 1800 | 3 | 2.5 | 26.5 | 61968 | ||
| 480 | 60 | 305 | 451 | 9.44 | 1100 | 1000 | 4 | 3 | 36 | 306890 | ||
| 520 | 57 | 353 | 549 | 11.2 | 2300 | 1700 | 4 | 3 | 45 | 16068 | ||
| 520 | 82 | 437 | 649 | 13.4 | 2300 | 1700 | 5 | 4 | 62 | 6068 | ||
| 620 | 92 | 585 | 961 | 18.5 | 1800 | 1300 | 6 | 5 | 110 | 6268 | ||
| 350 | 500 | 70 | 320 | 500 | 10.3 | 2400 | 1300 | 350 | 4 | 3 | 46 | 306674 |
| 360 | 440 | 38 | 182 | 294 | 6.29 | 2500 | 1900 | 360 | 2.1 | 2 | 12 | 61872 |
| 440 | 25 | 126 | 226 | 4.8 | 2500 | 2000 | 1.5 | 1.5 | 6.5 | 60872 | ||
| 480 | 56 | 308 | 476 | 9.68 | 2500 | 1800 | 3 | 2.5 | 28 | 61972 | ||
| 540 | 57 | 368 | 593 | 11.9 | 2300 | 1500 | 4 | 3 | 49 | 16072 | ||
| 540 | 82 | 445 | 735 | 14.8 | 2300 | 1600 | 5 | 4 | 64.5 | 6072 | ||
| 380 | 480 | 46 | 244 | 413 | 8.47 | 2300 | 1800 | 380 | 2.1 | 2 | 20 | 61876 |
| 520 | 65 | 340 | 555 | 11.1 | 2300 | 1600 | 4 | 3 | 40 | 61976 | ||
| 550 | 82 | 414 | 720 | 15.3 | 2600 | 2200 | 5 | 4 | 65 | 306682 | ||
| 560 | 57 | 383 | 637 | 12.5 | 2100 | 1400 | 4 | 3 | 51 | 16076 | ||
| 560 | 82 | 446 | 726 | 14.3 | 2100 | 1500 | 5 | 4 | 70.5 | 6076 | ||
| 400 | 500 | 46 | 249 | 413 | 8.31 | 2300 | 1700 | 400 | 2.1 | 2 | 20.5 | 61880 |
| 500 | 31 | 170 | 297 | 5.94 | 2350 | 1800 | 2 | 2 | 15.5 | 60880 | ||
| 540 | 65 | 360 | 601 | 11.8 | 2100 | 1500 | 4 | 3 | 41.5 | 61980 | ||
| 540 | 44 | 263 | 471 | 9.1 | 2300 | 1700 | 3 | 2.5 | 27.5 | 60980 | ||
| 590 | 74 | 450 | 762 | 14.4 | 2050 | 1600 | 4 | 3 | 70 | 306614 | ||
| 600 | 90 | 542 | 911 | 17.2 | 1900 | 1500 | 5 | 4 | 87.5 | 6080 | ||
FSK Bearing Company Advantages:
(1) We have first-class testing equipment to detect bearing various data parameters and control the quality of the bearing.
Whenever bearings must first detected whether the quality is qualified and the unqualified bearing will be eliminated directly.
So we can get the trust of a large number of customers, and supply them for several years.
(2) We have our own R & D capabilities, to help customers solve the problem of non-standard bearings.
We can also according to customer requirements change their own mark.
(3) Price, our manufacture ensure that our prices across China are quite competitive.
It is better for you to compare prices and quality among suppliers.
But everyone knows you can not buy the highest quality products with the lowest price,
but our product is the best quality if you use equal price.
FSK Cooperation Detail
Delivery:
For Small weight or ungent ,we send by express UPS,DHL,FEDEX, or EMS,china post with Thracking number
For max production , we will ship by sea/air.
Payment Item:
TT, 30% deposit , 70% before shippment.
L/C At Sight
Paypal Or Western Union In advance
Service:
Trade Assurance
Payment Protection
Timely Delivery Guaranteed
Product Qualtity Protection
Radial 306674 Deep Groove Ball Bearing 350*500*70mm Brass Cage Thin Wall,Get Cheap Price From China Bearing Factory Now !
