제품 상세정보
원래 장소: 중국
브랜드 이름: FSK / KOYO / NSK / FAG / NTN / TIMKEN / OEM
인증: ISO9001-2000 / CE / ROHS / UL
모델 번호: 528407
지불과 운송 용어
최소 주문 수량: 1 개 PC
가격: Talk in the letter
포장 세부 사항: 1) 컬러 싱글 박스 포장 + 카톤 박스 포장 + 팔레트, 2) 산업용 포장
배달 시간: 세부 사항이 확인 된 후 5-7 일
지불 조건: L/C, T/T, Western Union, MoneyGram
공급 능력: 100000pcs/월
모델: |
528407 베어링 |
베어링 크기: |
520.7*736.6*114.3 mm |
베어링 중량: |
210kg |
HS 코드: |
8482800000 |
정밀 등급: |
P0 / P6 / P5 / P4 /P2 |
o링인: |
중국 |
모델: |
528407 베어링 |
베어링 크기: |
520.7*736.6*114.3 mm |
베어링 중량: |
210kg |
HS 코드: |
8482800000 |
정밀 등급: |
P0 / P6 / P5 / P4 /P2 |
o링인: |
중국 |

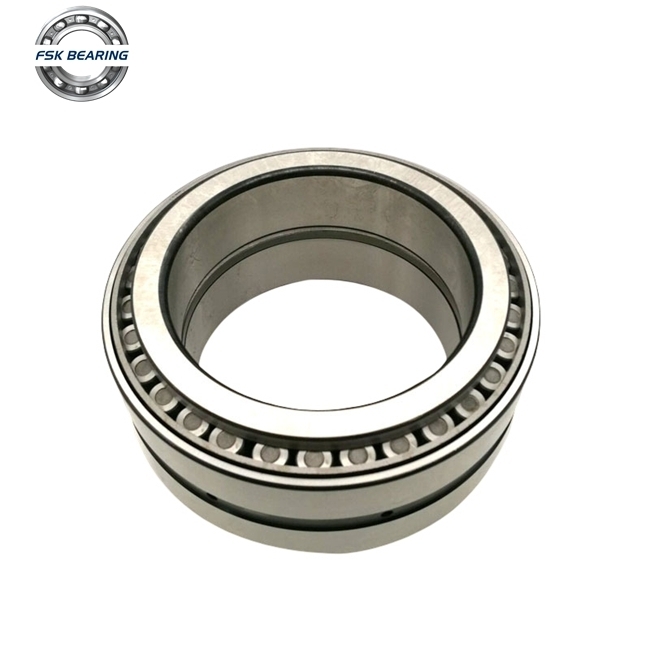

Imperial 528407 EE982051.901CD Double Row Taper Roller Bearing China Manufacturer
Bearing Specification
|
FSK Bearing Model Number |
528407 Bearing |
| Alternative Number | EE982051.901CD |
|
Part Name |
Tapered Roller Bearings |
|
Application |
Railway Gearbox Bearings |
| Row |
Double Row |
| Structure |
TDO One Integral Tapered Double Outer Ring , Two Sperated Inner Rings |
|
Brand |
FSK / KOYO / NSK / FAG / NTN / TIMKEN / OEM |
|
Material |
Gcr15 Chrome Steel |
|
Precision Rating |
ABEC-3 to ABEC-5 P6 / P5 / P4 |
| Vibration and Noise | Z0V0 / Z1V1 / Z2V2 / Z3V3 |
| Cage | Steel Cage |
| Weight (kg) |
210 kg |
| Dimension | 520.7*736.6*114.3 mm |
| HS Code | 8482800000 |
| Original Country Show | CHINA |
Bearings Detailed Pictures
Same Series Bearing We Do
| Shortcut code | Execution Design | Comparative designation Equivalent number |
Dimension | rs min |
r1s min |
Weight Mass ≈ |
Tragzahl ·Faktor Load rating ·Factor |
Equivalent load rating¹) | Axialfaktor Thrust factor |
||||||
| FAG | (TDO-Type) | d | D | T | C | kg | dyn. C ISO 281 kN |
stat. Co |
e | Cr90 kN |
Ca90 | K | |||
| mm/inch | |||||||||||||||
| 515090 | 1 | HM926740.710D | 114.3 4.5000 |
228.6 9.0000 |
115.888 4.5625 |
84.138 3.3125 |
2.3 | 3.6 | 22 | 695 | 1180 | 0.7 | 208 | 143 | 0.83 |
| 540157 | 1 | 67390.325D | 133.35 5.2500 |
200.025 7.8750 |
101.6 4.0000 |
85.725 3.3750 |
0.8 | 3.6 | 11.1 | 540 | 1140 | 0.34 | 160 | 53 | 1.7 |
| 543176 | 2 | 99550.102CD | 139.7 5.5 |
254 10 |
149.225 5.875 |
111.125 4.375 |
1.5 | 7.1 | 31.3 | 1000 | 1930 | 0.41 | 290 | 116 | 1.43 |
| 562080 | 2 | 99575.102CD | 146.05 5.7500 |
254 10 |
149.225 5.8750 |
111.125 4.3750 |
1.5 | 7.1 | 29.7 | 1000 | 1930 | 0.41 | 290 | 116 | 1.43 |
| 510855 | 1 | M231649.610D | 152.4 6.0000 |
222.25 8.7500 |
100.01 3.9374 |
76.2 3.0000 |
0.8 | 3.6 | 12.7 | 510 | 1060 | 0.35 | 150 | 50 | 1.68 |
| 503316 | 1 | 99600.102D | 152.4 6.0000 |
254 10.0000 |
149.225 5.8750 |
111.125 4.3750 |
1.5 | 7.1 | 29.1 | 1000 | 1930 | 0.41 | 290 | 116 | 1.43 |
| 522040 | 1 | HM237535.510D | 165.1 6.5000 |
288.925 11.375 |
142.875 5.6250 |
111.125 4.3750 |
1.5 | 7.1 | 36.8 | 1160 | 2120 | 0.32 | 340 | 108 | 1.83 |
| 532949 | 1 | M238840.810D | 177.8 7.0000 |
269.875 10.6250 |
119.062 4.6875 |
93.662 3.6875 |
1.5 | 3.6 | 23.9 | 880 | 1900 | 0.33 | 260 | 85 | 1.75 |
| 503594 | 2 | HM237545.510CD | 177.8 7.0000 |
288.925 11.375 |
142.875 5.625 |
111.125 4.375 |
1.5 | 7.1 | 33.6 | 1160 | 2120 | 0.32 | 340 | 108 | 1.83 |
| 525012 | 1 | M238849.810D | 187.325 7.3750 |
269.875 10.6250 |
119.062 4.6875 |
93.662 3.6875 |
1.5 | 3.6 | 20.8 | 880 | 1900 | 0.33 | 260 | 85 | 1.75 |
| 512704A | 1 | 67885.820D | 190.5 7.5000 |
266.7 10.5000 |
103.188 4.0625 |
84.138 3.3125 |
0.8 | 3.6 | 17.2 | 600 | 1500 | 0.48 | 176 | 83 | 1.22 |
| 525882 | 2 | 93787.127CD | 200.025 7.8750 |
317.5 12.5000 |
146.05 5.7500 |
111.125 4.3750 |
1.5 | 4.3 | 41.9 | 1080 | 2400 | 0.53 | 320 | 166 | 1.11 |
| 518879A | 2 | 93800.127CD | 203.2 8.0000 |
317.5 12.5000 |
146.05 5.7500 |
111.125 4.3750 |
1.5 | 4.3 | 40.6 | 1080 | 2400 | 0.53 | 320 | 166 | 1.11 |
| 523062 | 2 | H242649.610CD | 206.375 8.1250 |
336.55 13.2500 |
211.138 8.3125 |
169.862 6.6875 |
1.5 | 3.3 | 69.3 | 1930 | 4000 | 0.34 | 570 | 190 | 1.73 |
| 518468 | 1 | 130902.131401D | 228.6 9.0000 |
355.6 14.0000 |
152.4 6.0000 |
111.125 4.3750 |
1.5 | 6.9 | 53.6 | 1120 | 2650 | 0.59 | 335 | 193 | 0.99 |
| 514401 | 1 | HM746646.610D | 228.6 9.0000 |
355.6 14.0000 |
152.4 6.0000 |
114.3 4.5000 |
1.5 | 6.4 | 52.8 | 1120 | 2650 | 0.59 | 335 | 193 | 0.99 |
| 515125 | 2 | HH949549.510CD | 228.6 9.0000 |
488.95 19.2500 |
254 10.0000 |
152.4 6.0000 |
1.5 | 6.4 | 205 | 2550 | 4400 | 0.94 | 765 | 695 | 0.62 |
| 505612 | 2 | M249749.710CD | 254 10.0000 |
358.775 14.1250 |
152.4 6.0000 |
117.475 4.6250 |
1.5 | 3.6 | 44.2 | 1370 | 3150 | 0.34 | 400 | 134 | 1.71 |
| 515129 | 1 | HH953749.710D | 254 10.0000 |
533.4 21.0000 |
276.225 10.8750 |
165.1 6.5000 |
1.5 | 6.4 | 259 | 3350 | 5400 | 0.87 | 1000 | 850 | 0.67 |
| 514599 | 1 | HM252349.310D | 260.35 10.2500 |
422.275 16.6250 |
178.592 7.0312 |
139.7 5.5000 |
1.5 | 6.9 | 86.8 | 1860 | 3550 | 0.33 | 550 | 180 | 1.74 |
| 524440A | 2 | LM654649.610CD | 285.75 11.2500 |
380.898 14.9960 |
139.7 5.5000 |
107.95 4.2500 |
1.5 | 3.6 | 42 | 1180 | 3250 | 0.43 | 345 | 146 | 1.35 |
| 525830 | 1 | EE147112.198D | 285.75 11.2500 |
501.65 19.7500 |
203.2 8.0000 |
120.65 4.7500 |
3.3 | 6.4 | 143 | 2160 | 3750 | 0.78 | 640 | 490 | 0.75 |
| 505614A | 2 | M255449.410CD | 288.925 11.3750 |
406.4 16.0000 |
165.1 6.5000 |
130.175 5.1250 |
1.5 | 6.4 | 62.6 | 1730 | 4150 | 0.35 | 510 | 176 | 1.68 |
| 526864 | 1 | HM256849.810D | 300.038 | 422.275 | 174.625 | 136.525 | 1.5 | 6.4 | 72.1 | 1800 | 4400 | 0.36 | 530 | 190 | 1.61 |
| 527128 | 2 | EE129120X.173CD | 304.8 12.0000 |
438.048 17.2460 |
165.1 6.5000 |
120.65 4.7500 |
1.5 | 6.4 | 73.8 | 1340 | 3250 | 0.4 | 400 | 156 | 1.46 |
| 512601 | 1 | EE148122.220D | 311.15 12.2500 | 558.8 22.0000 |
190.5 7.5000 |
111.125 4.3750 |
3.3 | 9.7 | 172 | 2160 | 3900 | 0.88 | 640 | 550 | 0.66 |
| 521746 | 2 | EE291250.751CD | 317.5 12.5000 |
444.5 17.5000 |
146.05 5.7500 |
98.425 3.8750 |
1.5 | 7.9 | 59.8 | 1250 | 2800 | 0.38 | 365 | 134 | 1.55 |
| 510607A | 2 | HM259049.010CD | 317.5 12.5000 |
447.675 17.6250 |
180.975 7.1250 |
146.05 5.7500 |
1.5 | 3.6 | 85 | 2080 | 5200 | 0.33 | 610 | 200 | 1.75 |
| 515495 | 2 | EE526130.191CD | 330.2 13.0000 |
482.6 19.0000 |
177.8 7.0000 |
127 5.0000 |
1.5 | 6.4 | 97.7 | 2080 | 4550 | 0.47 | 620 | 285 | 1.23 |
| 526831 | 2 | HM261049.010CD | 333.375 13.1250 | 469.9 18.5000 |
190.5 7.5000 |
152.4 6.0000 |
1.5 | 6.4 | 97.8 | 2120 | 5400 | 0.38 | 630 | 232 | 1.55 |
| 505613A | 2 | HM262749.710CD | 346.075 13.6250 | 488.95 19.2500 |
200.025 6.2500 |
158.75 7.8750 |
1.5 | 6.4 | 112 | 2500 | 6300 | 0.33 | 735 | 240 | 1.75 |
| 523319 | 2 | L163149.110CD | 355.6 14.0000 |
444.5 17.5000 |
136.525 5.3750 |
111.125 4.3750 |
1.5 | 3.6 | 45 | 1250 | 3750 | 0.31 | 360 | 110 | 1.9 |
| 510608A | 2 | EE231400.976CD | 355.6 14.0000 |
501.65 19.7500 |
155.575 6.1250 |
107.95 4.2500 |
1.5 | 6.4 | 85.1 | 1630 | 3750 | 0.44 | 480 | 208 | 1.32 |
| 581099 | 4 | HM265049.010CD | 368.249 14.4980 | 523.875 20.6250 |
214.312 8.4375 |
169.862 6.6875 |
1.5 | 6.4 | 141 | 2750 | 6800 | 0.35 | 815 | 280 | 1.66 |
| 573335 | 2 | EE181453.351CD | 368.3 14.5000 |
596.9 23.5000 |
203.2 8.0000 |
133.35 5.2500 |
2.3 | 9.7 | 184 | 2800 | 5300 | 0.42 | 815 | 335 | 1.40 |
| 527366 | 2 | EE231462.976CD | 371.475 14.6250 | 501.65 19.7500 |
155.575 6.1250 |
107.95 4.2500 |
1.5 | 6.4 | 73.7 | 1630 | 3750 | 0.44 | 480 | 208 | 1.32 |
| 526251 | 2 | EE192150.201CD | 381 15.0000 |
508 20.0000 |
139.7 5.5000 |
88.9 3.5000 |
1.5 | 6.4 | 66.8 | 1290 | 3200 | 0.53 | 375 | 196 | 1.1 |
| 581097 | 4 | M268730.710CD | 381 15.0000 |
590.55 23.2500 |
244.475 9.6250 |
193.675 7.6250 |
1.5 | 6.4 | 247 | 3550 | 8800 | 0.34 | 1040 | 345 | 1.71 |
| 547099 | 2 | M268730.710CD | 381 15.0000 |
590.55 23.2500 |
244.475 9.6250 |
193.675 7.6250 |
1.5 | 6.4 | 238 | 3350 | 8300 | 0.34 | 1000 | 335 | 1.71 |
| 579745 | 4 | HM266449.410CD | 384.175 15.1250 |
546.1 21.5000 |
222.25 8.7500 |
177.8 7.0000 |
1.5 | 6.4 | 159 | 3050 | 7800 | 0.33 | 900 | 290 | 1.75 |
| 505611B | 1 | EE234156.216D | 396.875 15.6250 |
546.1 21.5000 |
158.75 6.2500 |
117.475 4.6250 |
1.5 | 6.4 | 96.5 | 1800 | 4300 | 0.47 | 530 | 245 | 1.23 |
| 525845 | 2 | M667944.911CD | 406.4 16.0000 |
546.1 21.5000 |
185.738 7.3125 |
147.638 5.8125 |
1.5 | 6.4 | 117 | 2280 | 6300 | 0.45 | 670 | 300 | 1.3 |
| 515494 | 2 | EE736160.239CD | 406.4 16.0000 |
609.524 23.9970 |
177.8 7.0000 |
133.35 5.2500 |
1.5 | 8.1 | 167 | 2500 | 5500 | 0.47 | 735 | 335 | 1.25 |
| 578129 | 4 | M268749.710CD | 415.925 16.3750 |
590.55 23.2500 |
244.475 9.6250 |
193.675 7.6250 |
1.5 | 6.4 | 205 | 3550 | 8800 | 0.34 | 1040 | 345 | 1.71 |
| 517498A | 2 | M268749.710CD | 415.925 16.3750 |
590.55 23.2500 |
244.475 9.6250 |
193.675 7.6250 |
1.5 | 6.4 | 200 | 3600 | 9150 | 0.33 | 1060 | 345 | 1.75 |
| 527127 | 2 | LM869448.410CD | 431.8 17.0000 |
571.5 22.5000 |
155.575 6.1250 |
111.125 4.3750 |
1.5 | 3.3 | 95.5 | 2000 | 4800 | 0.55 | 585 | 315 | 1.07 |
| 579097 | 3 | - | 447.675 17.6250 |
635 25.0000 |
257.175 10.1250 |
206.375 8.1250 |
1.5 | 6.4 | 251 | 4300 | 10600 | 0.33 | 1270 | 405 | 1.79 |
| 521467A | 2 | M270749.710CD | 447.675 17.6250 |
635 25.0000 |
257.175 10.1250 |
206.375 8.1250 |
1.5 | 6.4 | 241 | 4150 | 10400 | 0.33 | 1250 | 400 | 1.79 |
| 529635 | 2 | EE244180.236CD | 457.2 18.0000 |
596.9 23.5000 |
165.1 6.5000 |
120.65 4.7500 |
1.5 | 9.7 | 107 | 2040 | 5600 | 0.4 | 600 | 236 | 1.46 |
| 541705 | 2 | M271648.610CD | 457.2 18.0000 |
660.4 26.0000 |
228.6 9.0000 |
171.45 6.7500 |
1.5 | 6.4 | 238 | 3750 | 9000 | 0.35 | 1100 | 375 | 1.68 |
| 517499B | 2 | M272749.710CD | 479.425 18.8750 |
679.45 26.7500 |
276.225 10.8750 |
222.25 8.7500 |
1.5 | 6.4 | 296 | 4400 | 11200 | 0.35 | 1290 | 450 | 1.66 |
| 578647 | 4 | M272749.710CD | 479.425 18.875 |
679.45 26.7500 |
276.225 10.8750 |
222.25 8.7500 |
1.5 | 6.4 | 304 | 4550 | 11800 | 0.35 | 1340 | 465 | 1.66 |
| 515917A | 2 | LM772748.710CD | 488.95 19.2500 |
634.873 24.9950 |
180.975 7.1250 |
136.525 5.3750 |
1.5 | 6.4 | 135 | 2500 | 6800 | 0.47 | 735 | 345 | 1.23 |
| 505610 | 1 | EE640192.261D | 488.95 19.2500 |
660.4 26.0000 |
206.375 8.1250 |
158.75 6.2500 |
1.5 | 6.4 | 184 | 2600 | 6950 | 0.45 | 765 | 335 | 1.29 |
| 515127A | 2 | EE243196.251CD | 498.475 19.6250 |
634.873 24.9950 |
177.8 7.0000 |
142.875 5.6250 |
1.5 | 6.4 | 122 | 2000 | 5600 | 0.43 | 585 | 245 | 1.36 |
| 578586 | 4 | M274149.110CD | 501.65 19.7500 |
711.2 28.0000 |
292.1 11.5000 |
231.775 9.1250 |
1.5 | 6.4 | 354 | 5000 | 13200 | 0.35 | 1460 | 510 | 1.66 |
| 528996 | 2 | M274149.110CD | 501.65 19.7500 |
711.2 28.0000 |
292.1 11.5000 |
231.775 9.1250 |
1.5 | 6.4 | 352 | 4900 | 12700 | 0.35 | 1460 | 500 | 1.66 |
| 518884 | 1 | EE426200.331D | 508 20.0000 |
838.2 33.0000 |
304.8 12.0000 |
222.25 8.7500 |
3.3 | 9.7 | 589 | 5500 | 11800 | 0.49 | 1630 | 780 | 1.20 |
| 528407 | 2 | EE982051.901CD | 520.7 20.5000 |
736.6 29.0000 |
186.502 7.3426 |
114.3 4.5000 |
1.5 | 6.4 | 210 | 2550 | 5700 | 0.48 | 750 | 345 | 1.23 |
| 577417 | 4 | M276449.410CD | 536.575 21.1250 |
761.873 29.9950 |
311.15 12.2500 |
247.65 9.7500 |
1.5 | 6.4 | 427 | 6000 | 15300 | 0.3 | 1800 | 520 | 1.97 |
| 581098 | 4 | M276449.410CD | 536.575 21.1250 |
761.873 29.9950 |
311.15 12.2500 |
247.65 9.7500 |
1.5 | 6.4 | 427 | 6000 | 15300 | 0.3 | 1800 | 520 | 1.97 |
| 536948A | 2 | EE843220.291CD | 558.8 22.0000 |
736.6 29.0000 |
187.328 7.3751 |
138.112 5.4375 |
1.5 | 6.4 | 190 | 2900 | 7500 | 0.34 | 710 | 275 | 1.47 |
| 521229B | 2 | LM377449.410CD | 558.8 22.0000 |
736.6 29.0000 |
225.425 8.8750 |
177.8 7.0000 |
1.5 | 6.4 | 244 | 3900 | 10800 | 0.35 | 1140 | 390 | 1.68 |
| 541361 | 4 | LM377449.410CD | 558.8 22.0000 |
736.6 29.0000 |
225.425 8.8750 |
177.8 7.0000 |
1.5 | 6.4 | 255 | 3900 | 11200 | 0.35 | 1160 | 390 | 1.68 |
| 536529 | 2 | M278749.710CD | 571.5 22.5000 |
812.8 32.0000 |
333.375 13.1250 |
263.525 10.3750 |
1.5 | 3.3 | 483 | 6550 | 16600 | 0.33 | 1930 | 630 | 1.75 |
| 566721 | 4 | M278749.710CD | 571.5 22.5000 |
812.8 32.0000 |
333.375 13.1250 |
263.525 10.3750 |
1.5 | 6.4 | 520 | 6800 | 18000 | 0.33 | 2040 | 655 | 1.75 |
| 524528 | 2 | EE649237.311CD | 602.945 23.7380 |
787.4 31.0000 |
206.375 8.1250 |
158.75 6.2500 |
1.5 | 6.4 | 248 | 3100 | 9000 | 0.5 | 900 | 440 | 1.17 |
| 513974 | 2 | EE649240.311CD | 609.6 24.0000 |
787.4 31.0000 |
206.375 8.1250 |
158.75 6.2500 |
1.5 | 6.4 | 237 | 3100 | 9000 | 0.5 | 900 | 440 | 1.17 |
| 533433 | 1 | EE743240.321D | 609.6 24.0000 |
812.8 32.0000 |
190.5 7.5000 |
146.05 5.7500 |
3.3 | 6.4 | 244 | 3100 | 8000 | 0.33 | 915 | 300 | 1.75 |
| 574101 | 3 | - | 635 25.0000 |
990.6 39.0000 |
339.725 13.3750 |
212.725 8.3750 |
1.5 | 6.4 | 908 | 7100 | 15600 | 0.87 | 2120 | 1800 | 0.67 |
About Railway Bearing
Description
1) High quality, competitive price .
2) Original same bearing and same packing , same label and same barcode.
3) High-end producing line and testing.
4) Professional team and service.
5) / FAG/ INA/ TIMKEN / NSK / KOYO / NTN / NACHI / IKO/ RHP/ ASAHI/ IZWZ / HRB / LYC can be offered.
FSK Advantage
+ 10 years manufacture experiences
+ Secure Ordering
+ Delivery Date Guarantee
+ 100% Low Price Guaranteed
Established in 2005, FSK has grown to be one of the main professional providers for bearings all over the world . We take pride in every single product that we sell .Our bearings are in hot sale with better quality and low pricing. You can be relieved and trusting us for our professional bearing technology and service , our friendly English-speaking team is always ready to help you out with importing procedures, product questions and technical support. And we promise to make you or your client proud with our products and services.
Why Choose Us
1.More than 10 years export experience
2.Strict quality control
3.Delivery in time
4.OEM ODM service are available with good price
5.Low MOQ
Payment Terms
1.100% TT
2.30% TT of the deposit ,70% before delivery
3.Western union
4. Paypal (Small amount )
Imperial 528407 EE982051.901CD Double Row Taper Roller Bearing China Manufacturer,Get Cheap Price from China Steering Bearing Factory Now !
Contact With Us Freely
